Other Tips

Do you need to bend square aluminum tube, take a pipe bender and slip a square aluminum tube inside the bender and place a wooden dowel between the bender and the tube and bend slowly, you can bend up to a 90 degrees.

_______________________________________________________________

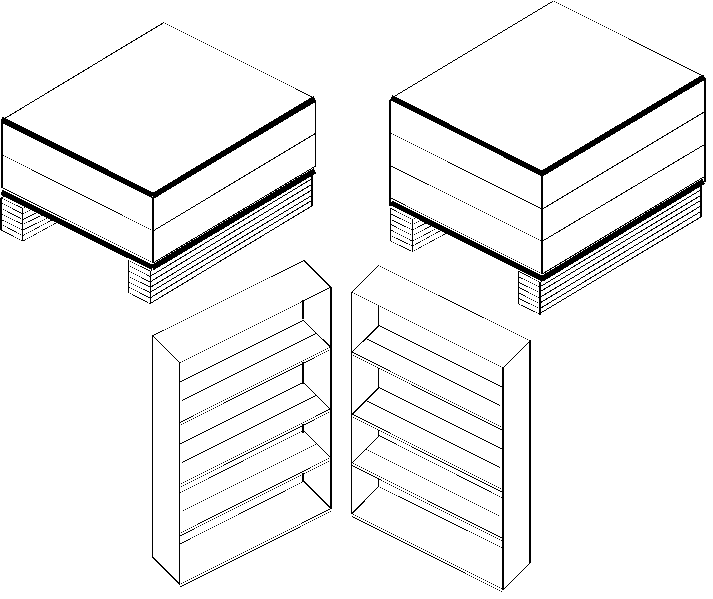

Ship box: You can make the ship box below and use it in the pits for shelving. The shelves are used for the skids under the box. You need one 4x8x1/2 plywood four 1x12x8 boards and six 1x6x8 boards. If you need it a little taller you can add 1x8 between the halves. On the sides you will need 3/4 slots for the shelves to slip into. Use screws to assemble it and at the end of the season you can totally break it down for space.

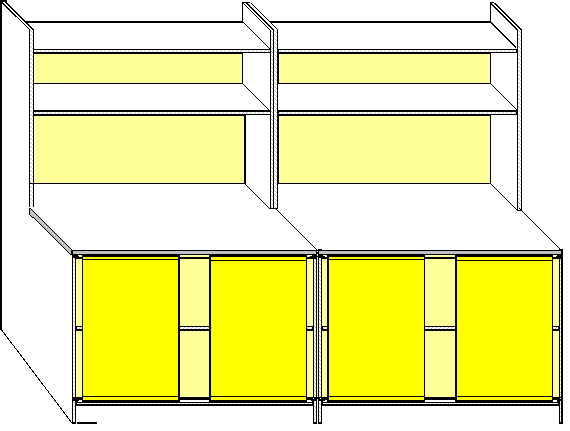

New design for our ship box, the left unit will flip over and attach to the second one. We will use cloth on bungee cord for the doors. The counter top and shelves you can remove for shipment.

_______________________________________________________________

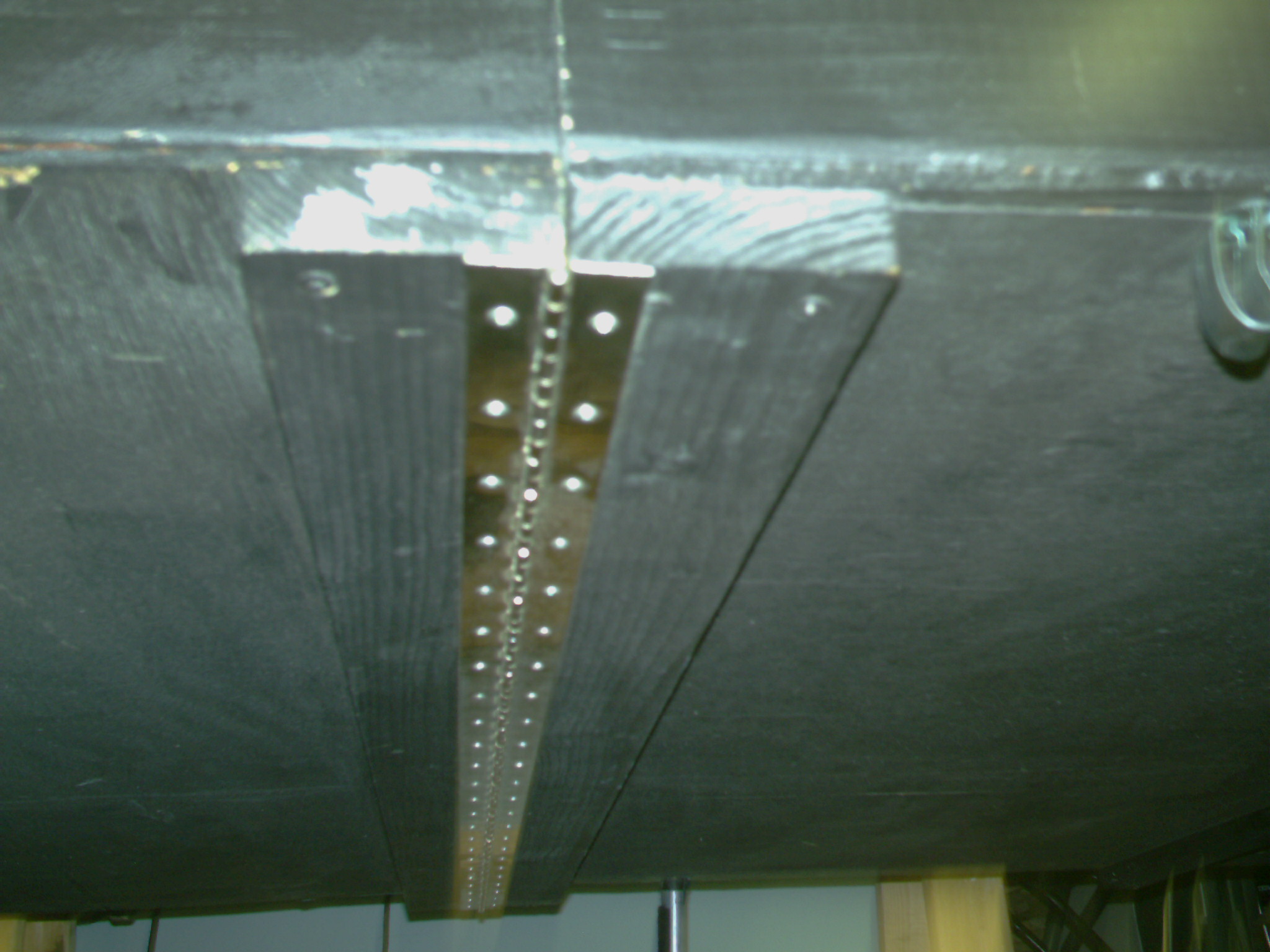

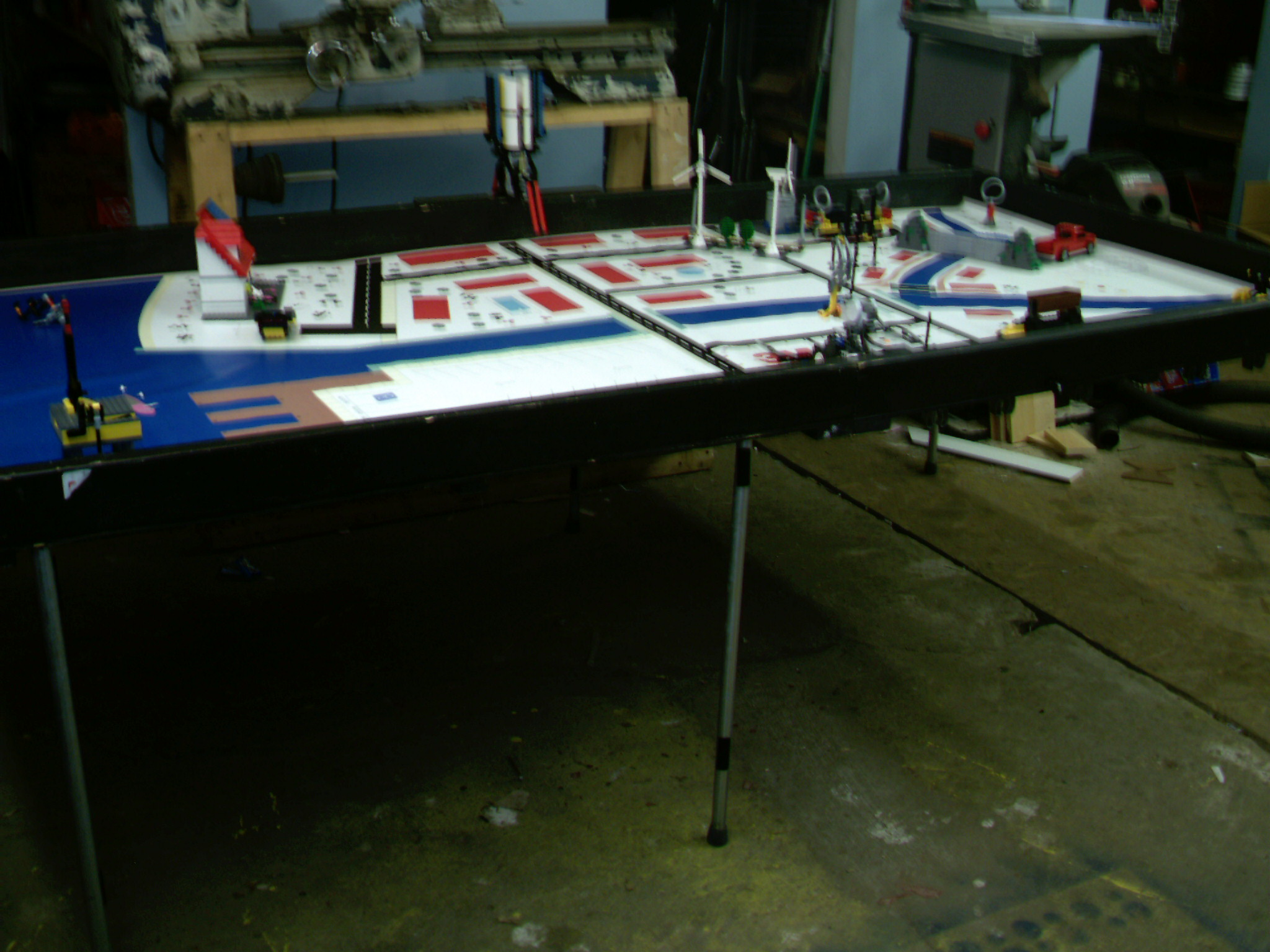

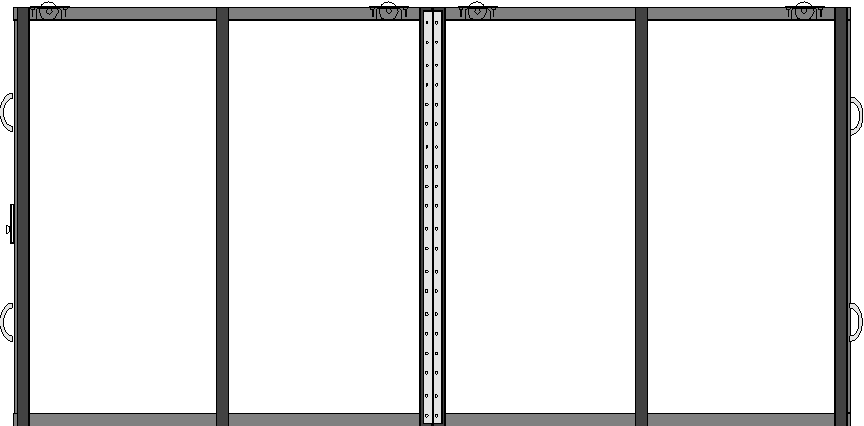

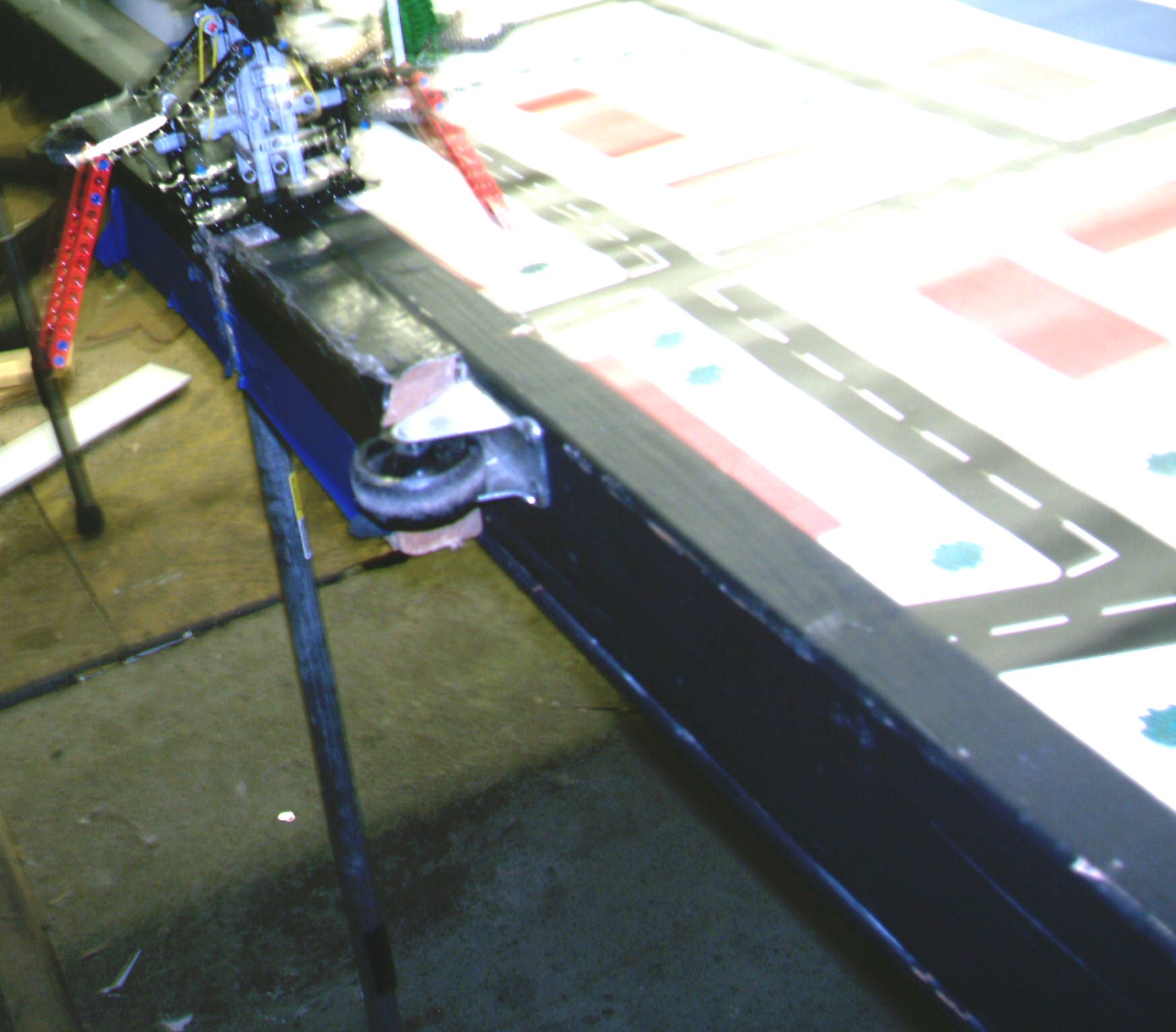

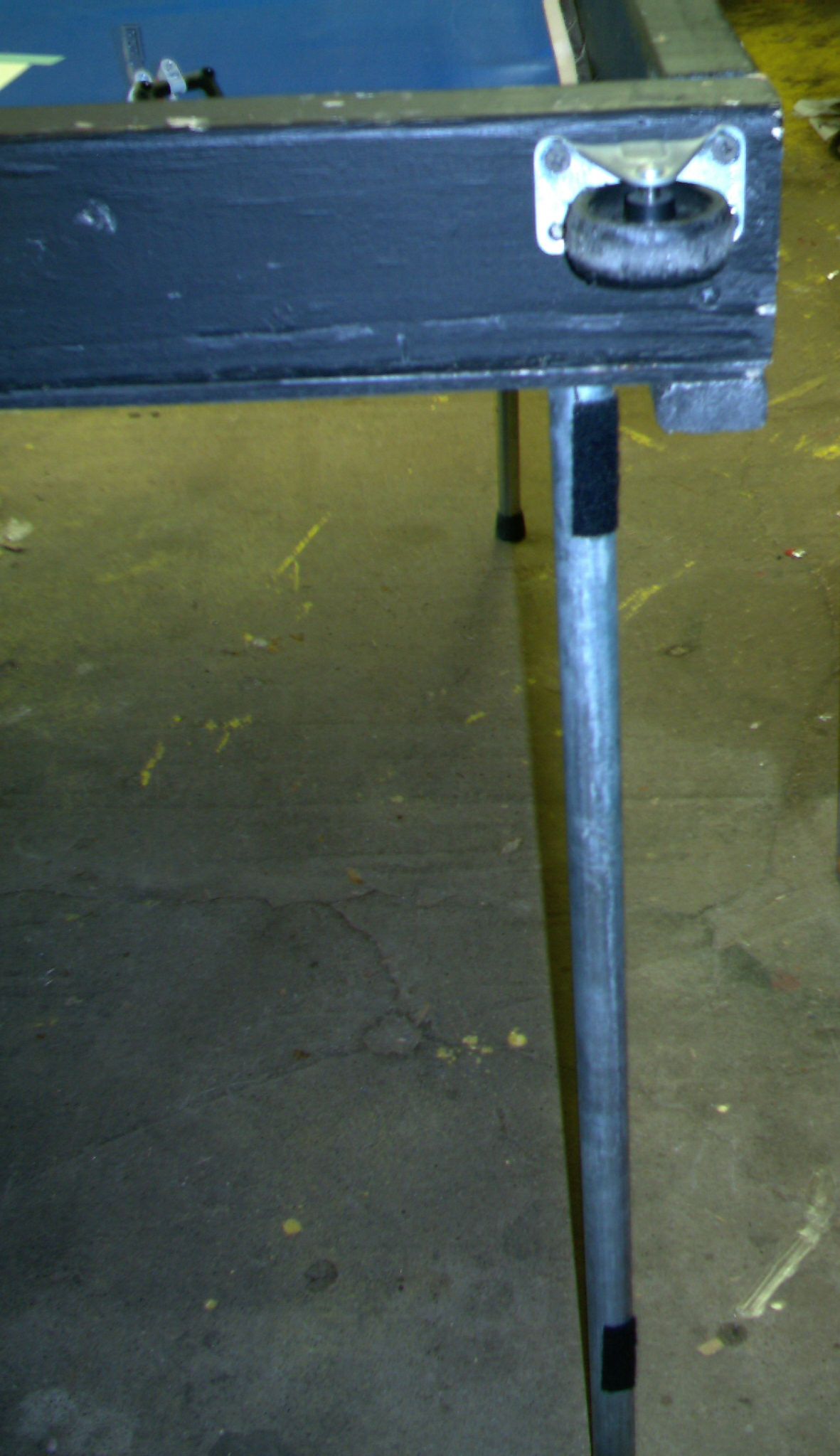

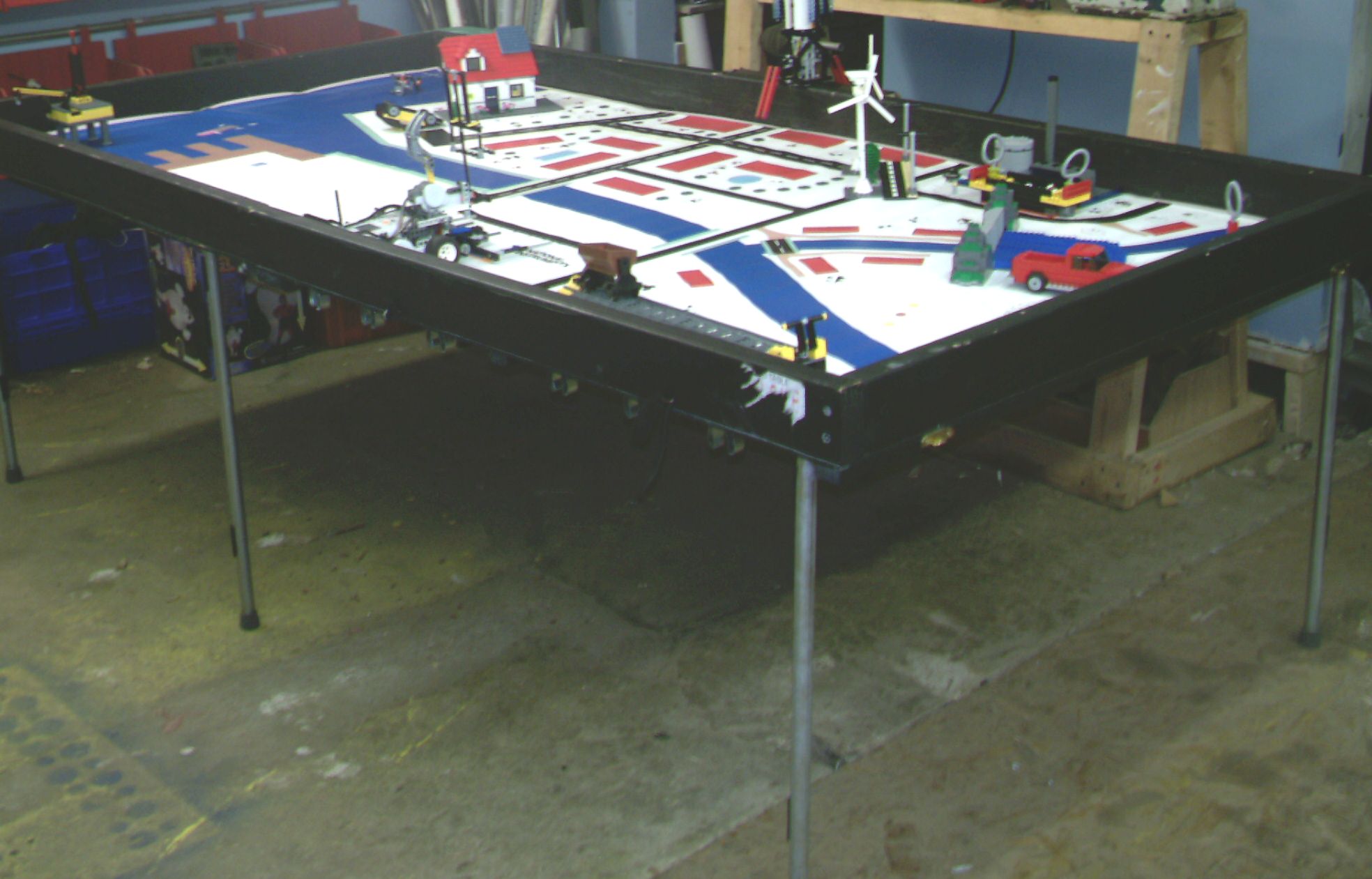

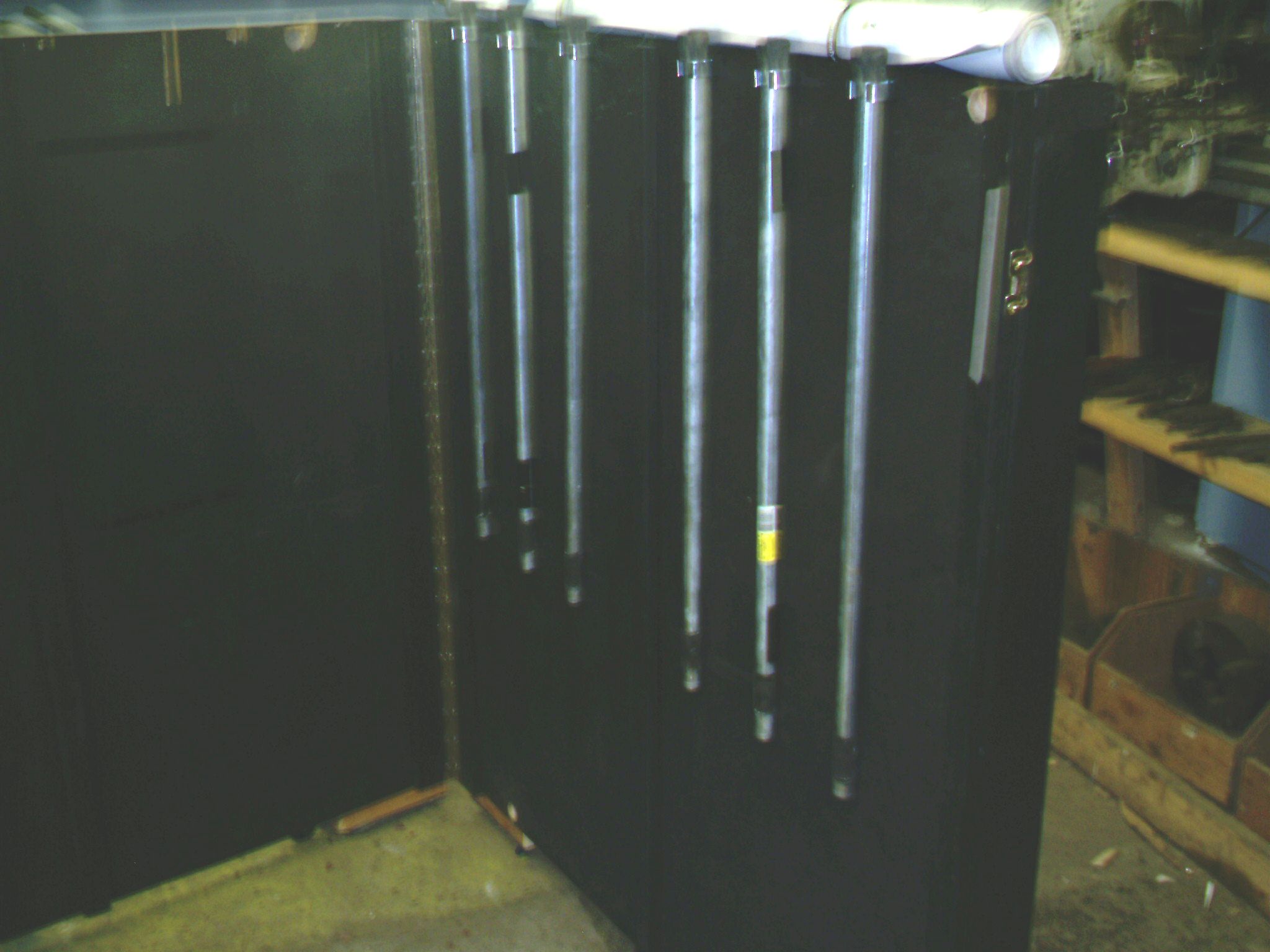

Folding Lego table, We drilled 7/8 holes in six locations to insert 3/4 EMT pipe for legs with rubber feet.  This is a bottom view, with underlayment for the base with 3/4 boards running across for support. We install wheels on the edge so it is easy to move when folded.

Click image below for a better view of the table
